Description
| SPECIFICATIONS | |
|---|---|

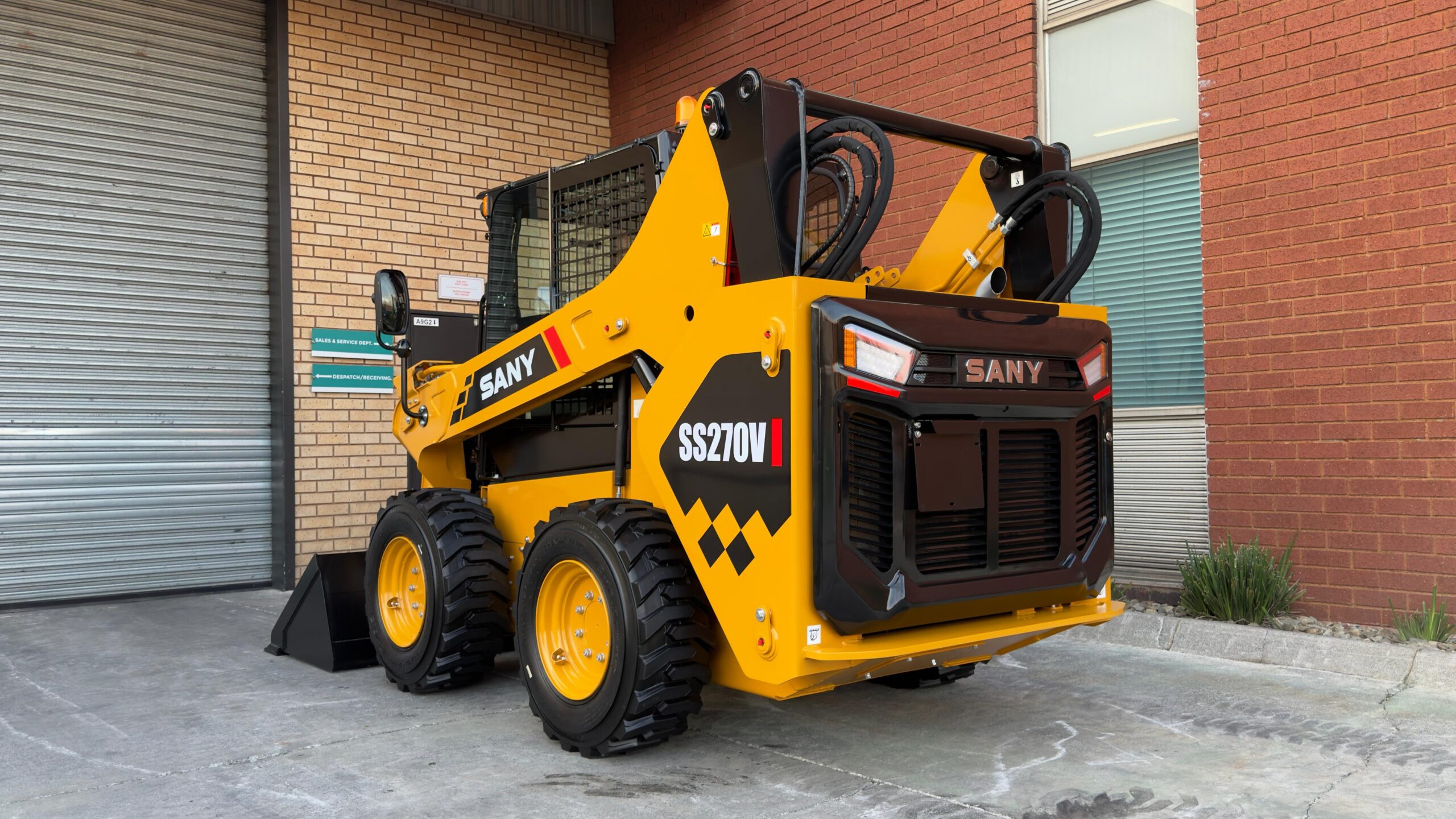

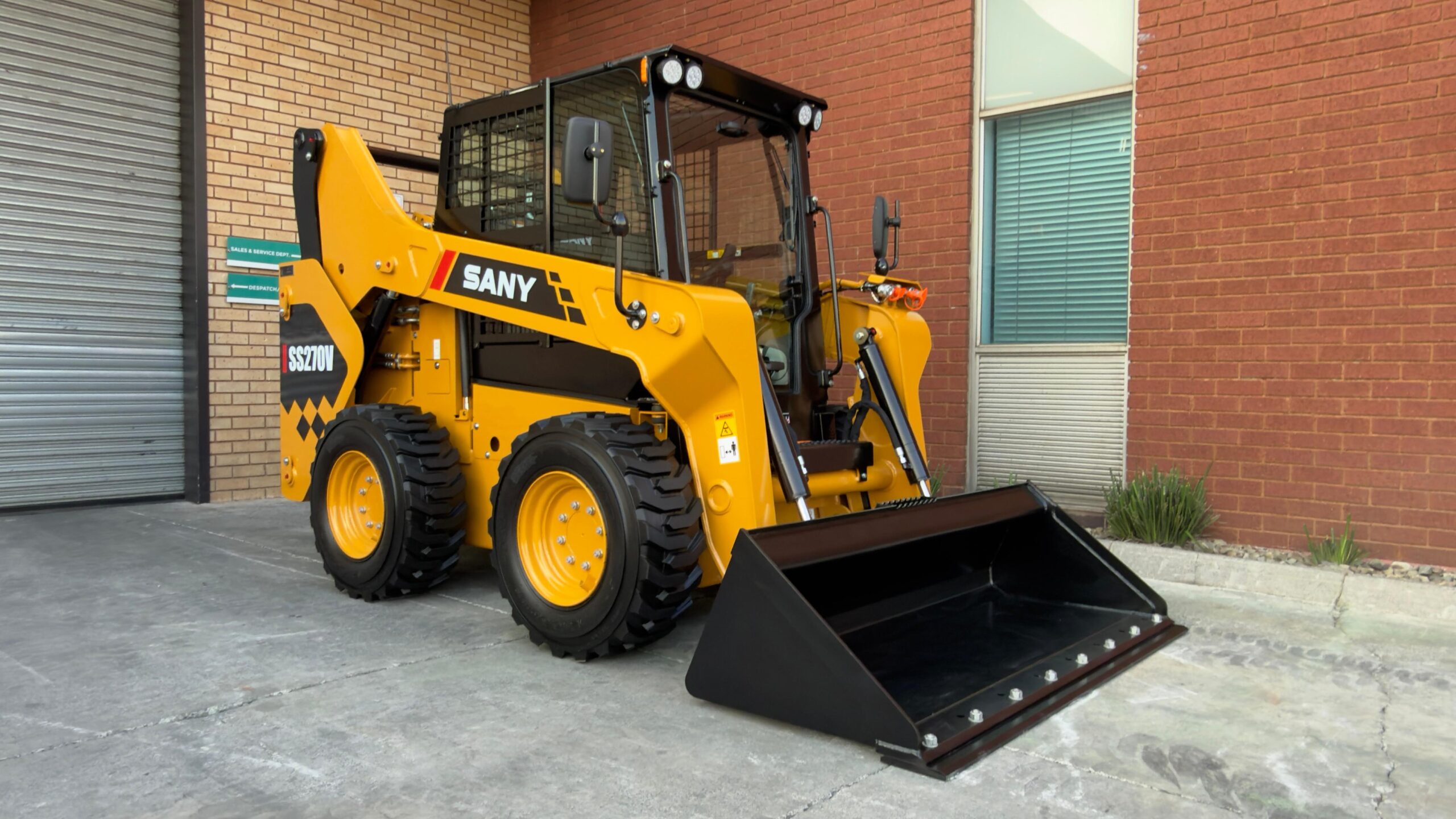

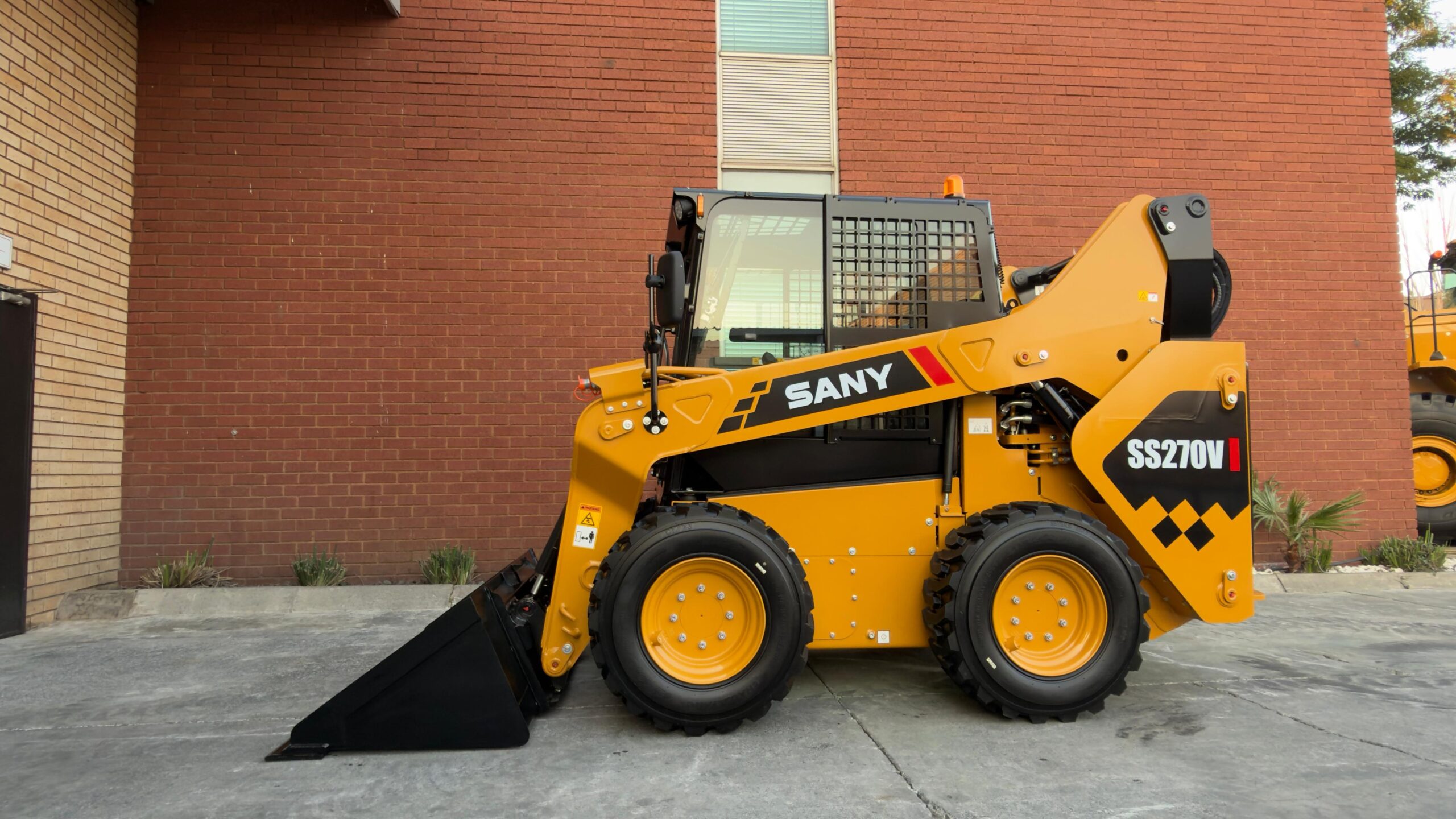

| Model | SS270V |

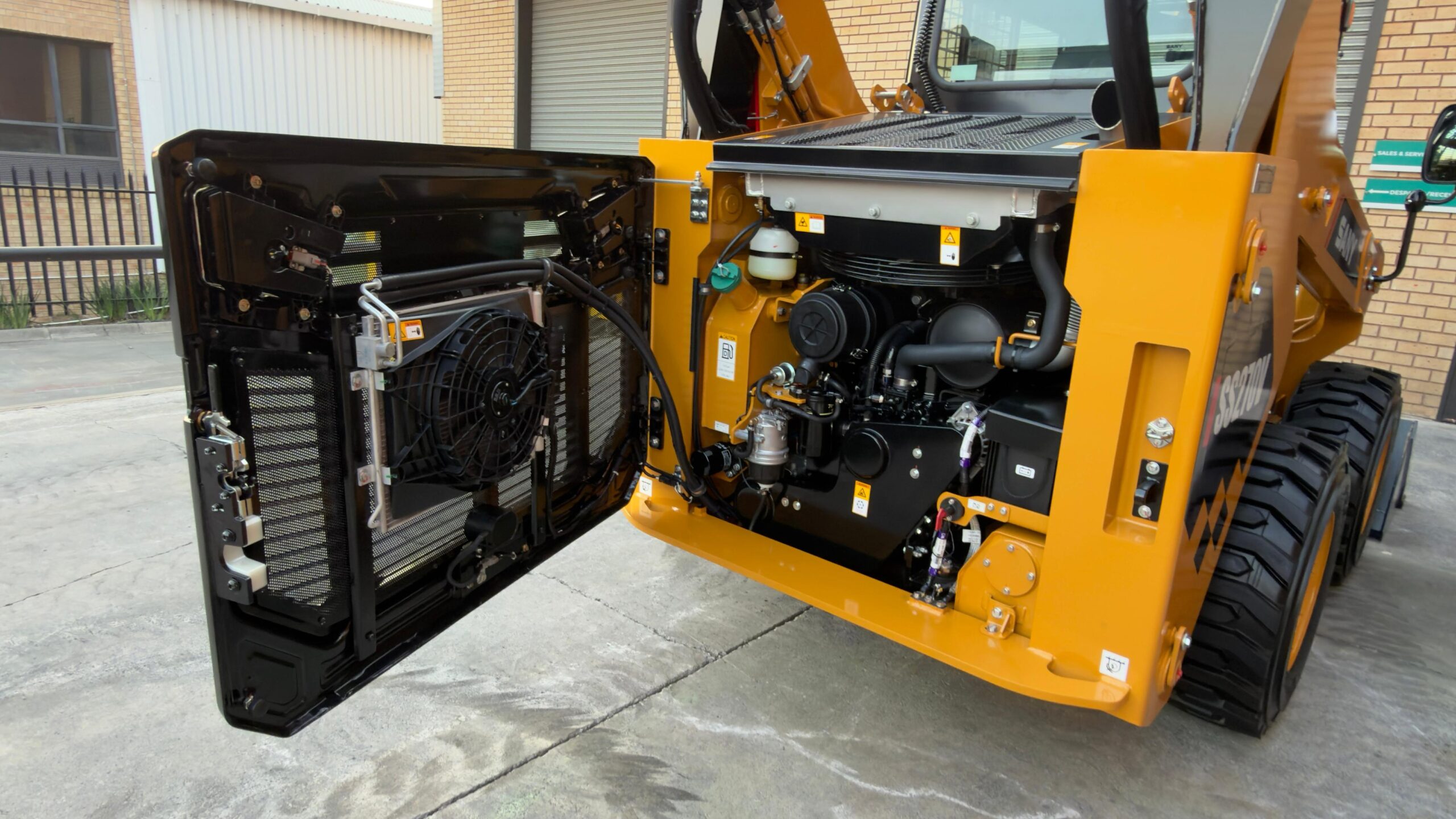

| ENGINE | |
| Engine Make | Yanmar Diesel |
| Rated Power | 61 kW (82 HP) |
| Engine Type | Water-Cooled |
| Engine Speed | 2,400 rpm |
| Peak Torque | 280 N·m |
| Aspiration | Turbocharged |
| Emissions | Euro 3 |
| Displacement | 3.3 L |
| Fan | Automatic Reversible Cleaning |
| TRANSMISSION | |
| Drive System | Hydrostatic |
| Drive | Four-Wheel Drive (4WD) |
| CAPACITIES | |

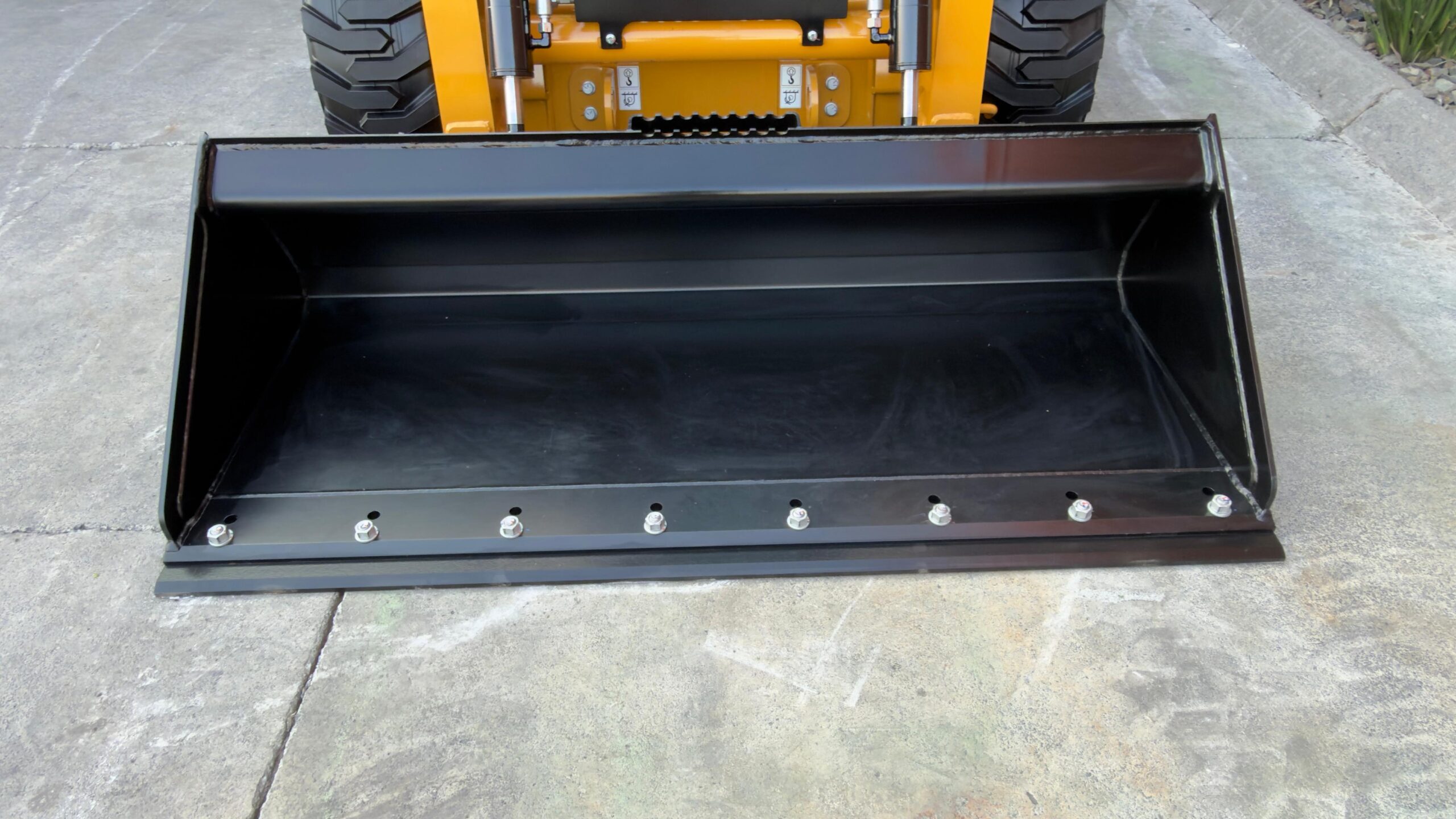

| Bucket Capacity | 0.5 m³ |
| Rated Operating Capacity | 1,290 kg |
| Operating Weight | 4,250 kg |
| Tipping Load | 2,580 kg |
| Travel Speed | 20 km/h |
| Cycle Time | 9.3 s |

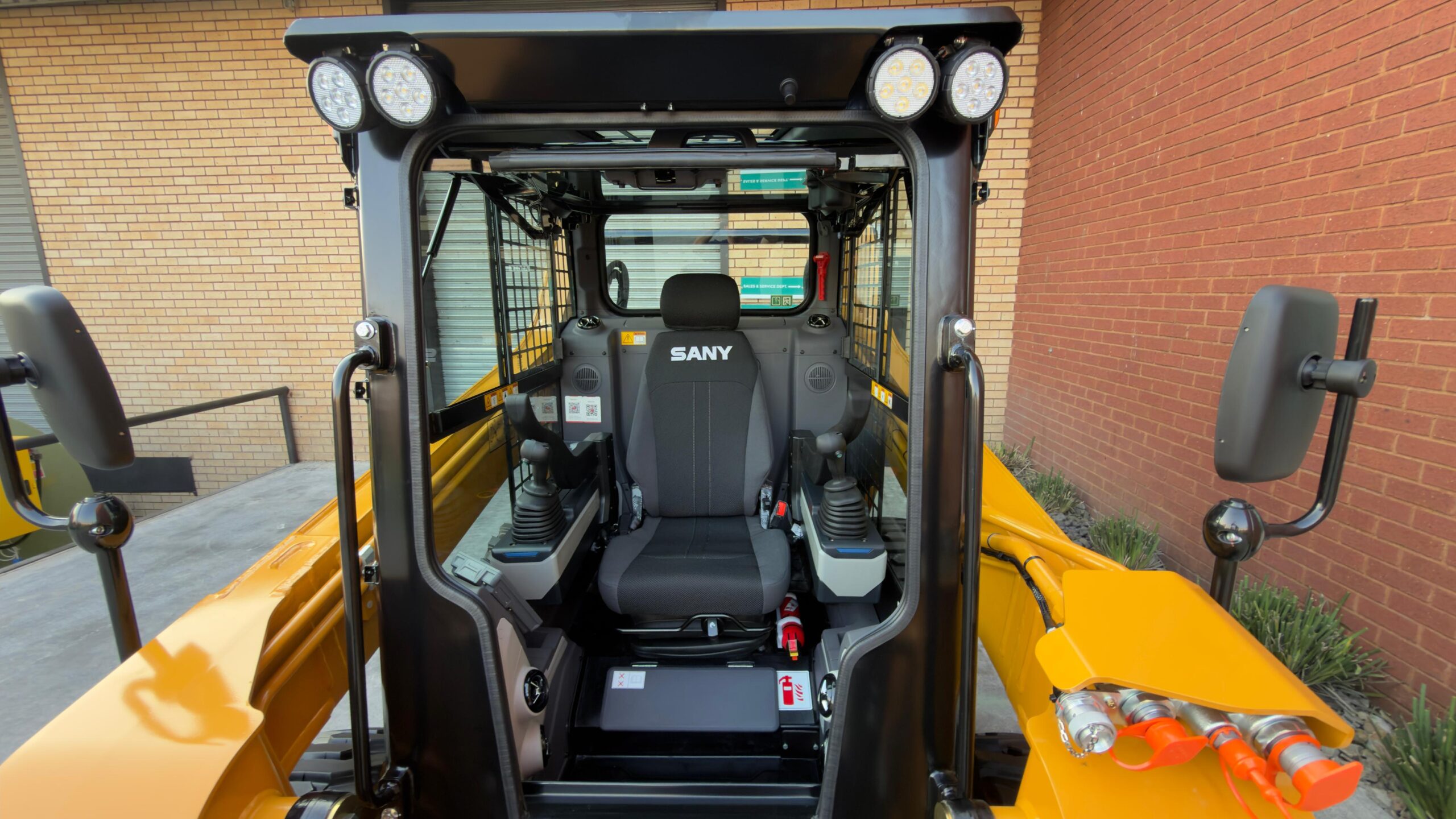

| OPERATOR CABIN | |
| Cabin | Fully Enclosed |
| Air Conditioning | A/C |
| ROPS/FOPS | Certified |
| Seat | Adjustable Suspension |
| Visibility | All-Round Visibility |
| TYRE SIZE | |

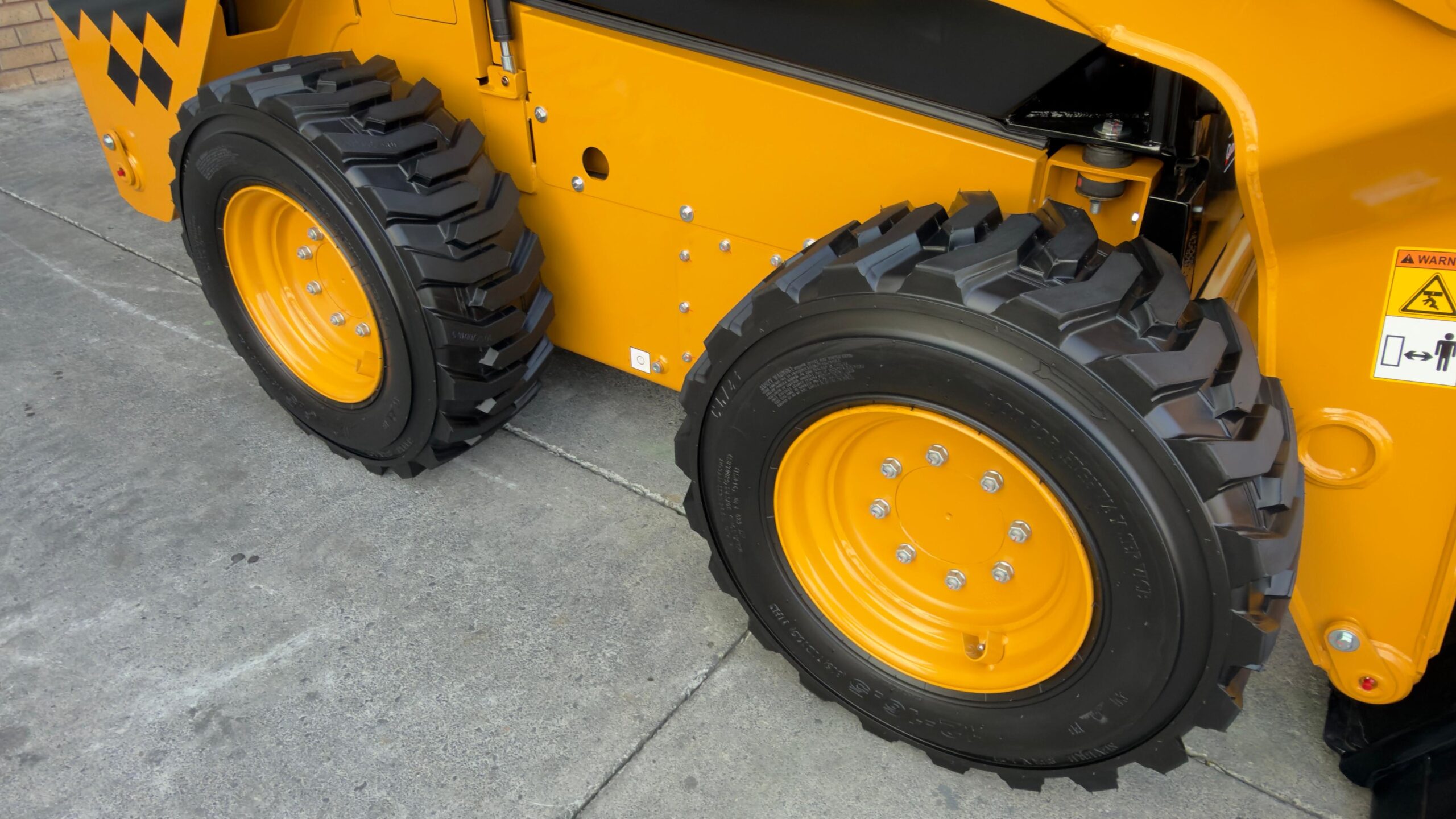

| Size | 12-16.5, 14PR |
| CONTROLS | |

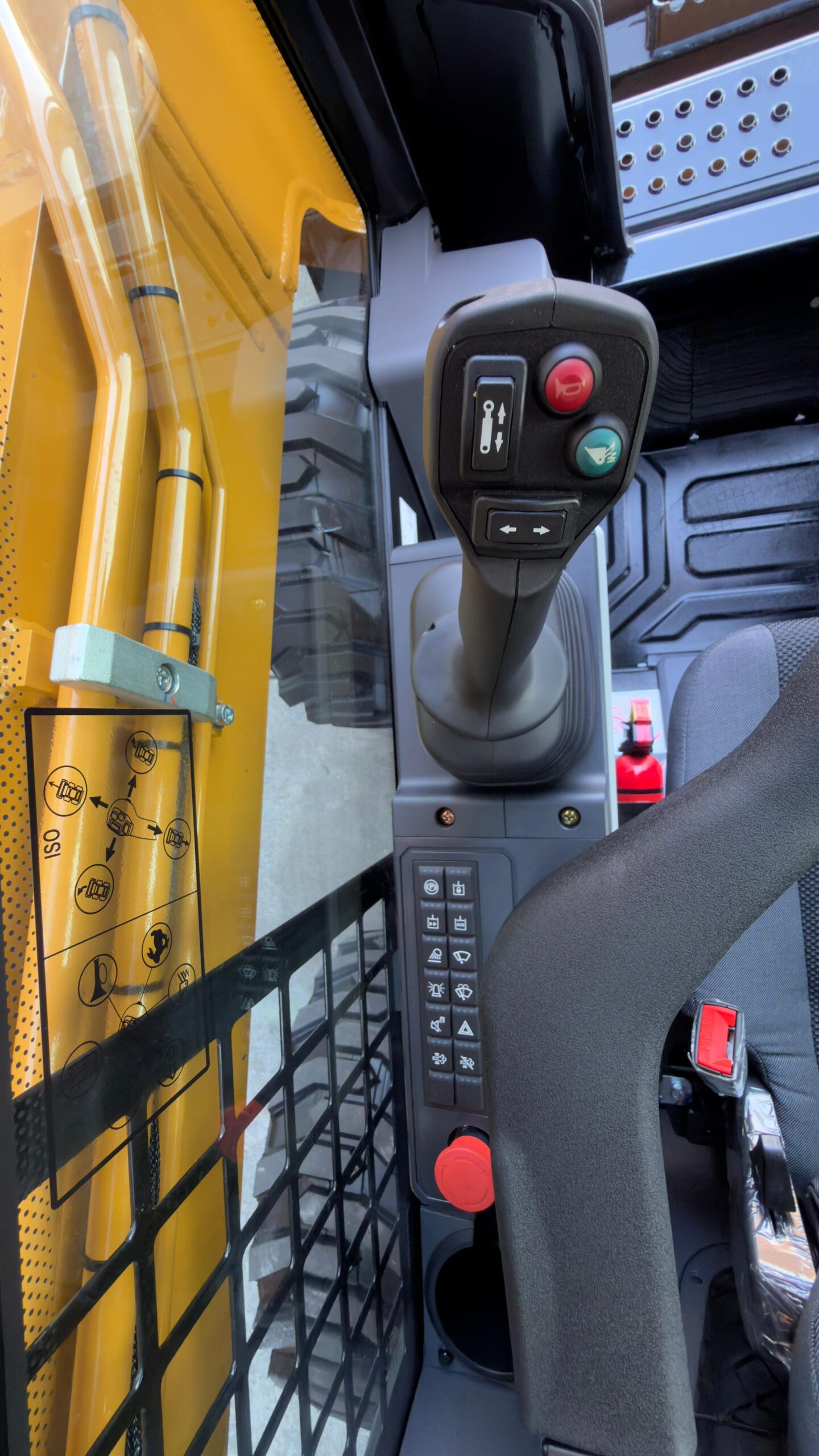

| Joystick | Dual |

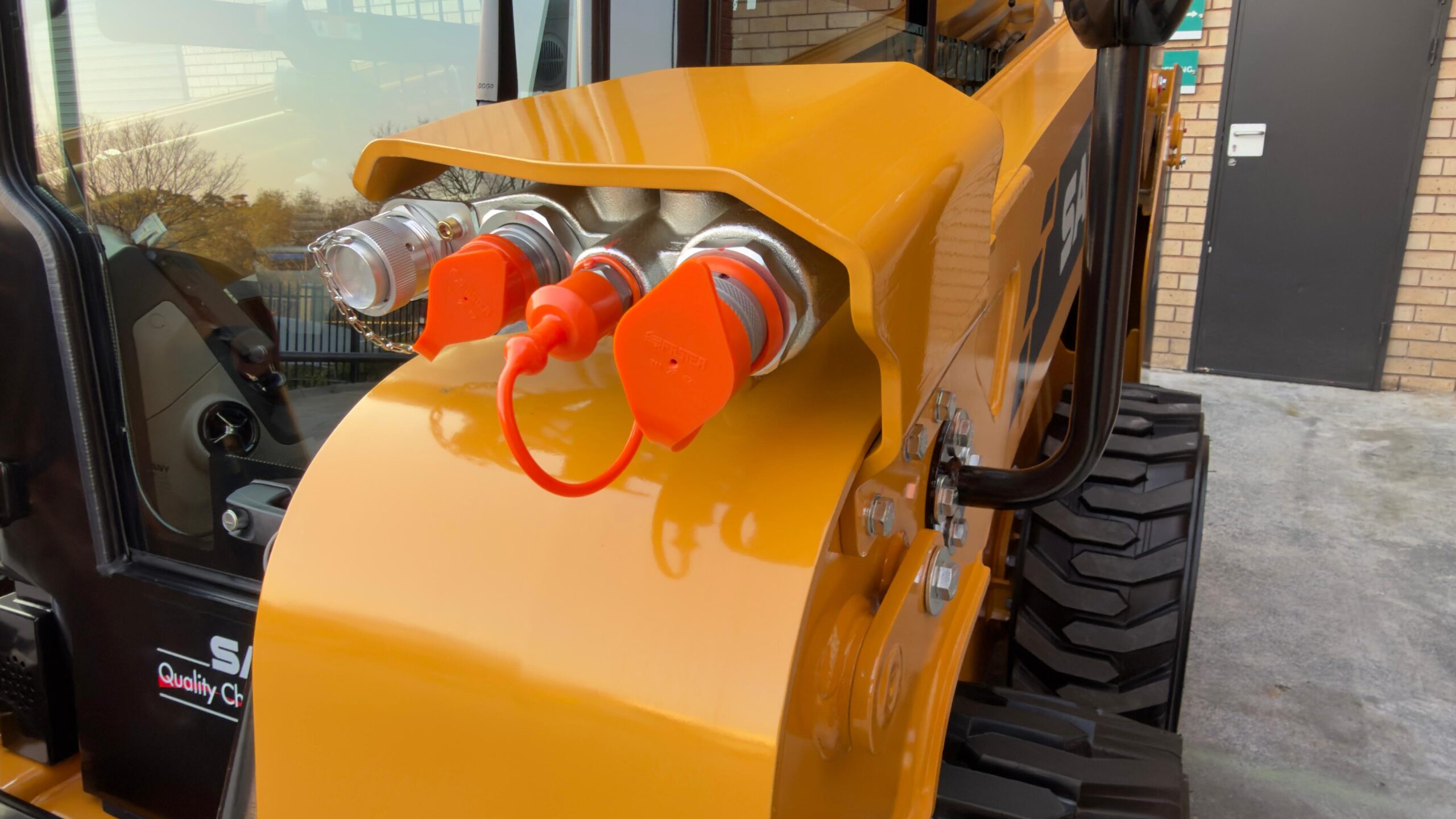

| Integrated | Auxiliary System |
| Computer | Touchscreen |
| SAFETY FEATURES | |
| Camera | Reverse Camera |
| ROPS/FOPS | Certified Cabin |
| Emergency | Stop Function |
| Work Lights | LED |
| Speed Control | Turtle & Hare |
| OPTIONAL EQUIPMENT | |
| Tectra | Telematics Monitoring System |
| WARRANTY | |
| Coverage | 3,000 Hours / 36 Months |
| DIMENSIONS | |
| Length (with Bucket) | 3,450 mm |
| Width | 1,850 mm |
| Height | 2,050 mm |
| Wheelbase | 1,100 mm |
| Ground Clearance | 200 mm |
