| Specification |
|---|
| Material | Carbon steel (S235JR). Watertight, electro-welded. Sandblasted and oven-baked powder-coated, UNI EN 10025. |
| Rust protection | Primed with an anti-rust layer and finished with green paint. |
| Support | Four anti-roll support legs. |
| Pressure testing | Tank is pressure-tested. |
| Manhole | Ø 400 mm with gasket and bolted cover, thickness 10 mm. |
| Filling | 3-inch lockable filling quick plug. |
| Overfill prevention | Mechanical valve calibrated to interrupt fuel flow at 90% of tank’s geometric capacity. |

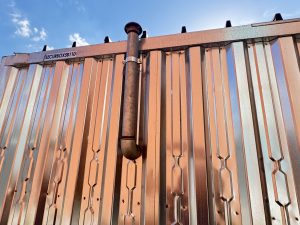

| Ventilation | Vent device with flame arrestor mesh positioned 240 cm from the ground. |
| Float operation | Mechanical float-operated tank. |
| Contents gauge | Planetary gear with adjustable scale in centimetres. |
| Connection | Suction and return plugs ready for generator/other equipment. Includes foot valve and strainer. |
| Drainage | Drainage point with safety cap for routine maintenance and cleaning. |
| Safety | Earthing and equipotential connection. |
| Suction point | Equipped with check valve and ball valve. |
| Platform | Equipped with a nonslip platform and handrail. |
| Containment Basin |
|---|
| Capacity | Holds 50% of the tank’s volume. |
| Material | Carbon steel. |
| Rust protection | Primed with an anti-rust layer and finished with green paint. |
| Base frame | Self-supporting, designed to be bolted to the tank. |
| Placement | Tank can be placed on any type of surface. |
| Fittings | Lifting plates, earth connection, rain plug for maintenance and cleaning. |
| Roof option | A galvanized roof can be fitted to the basin. |
| Fuel Transfer Unit |
|---|
| Pump | Self-priming vane electro Devil 55P, 50 L/min, built-in bypass valve and strainer. |
| Pump voltage | 230 V, 50 Hz |
| Automatic fuel nozzle | PA60 |
| Fuel meter | K33 |
| Diesel level indicator | Included |
| Hose | Antistatic rubber, 4 m |
| Filter | ES diesel filter |

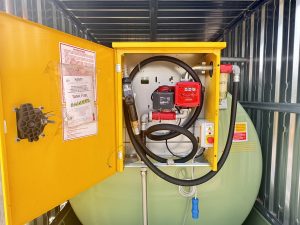

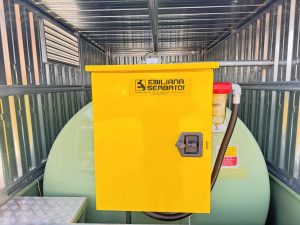

| Dispensing cabinet | IP55 protection box, on/off emergency button, minimum level pump shut-off. |
| Capacity |
|---|
| Capacity (TF5S-50%) | 5320 litres |
| Dimensions |
|---|
| TF5S-50% Tank | Ø 1600 mm × Length 2800 mm |
| Basin with SecureBox | Length 3280 mm × Width 1850 mm × Height 1555 mm |

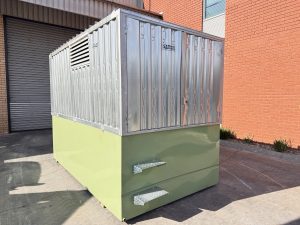

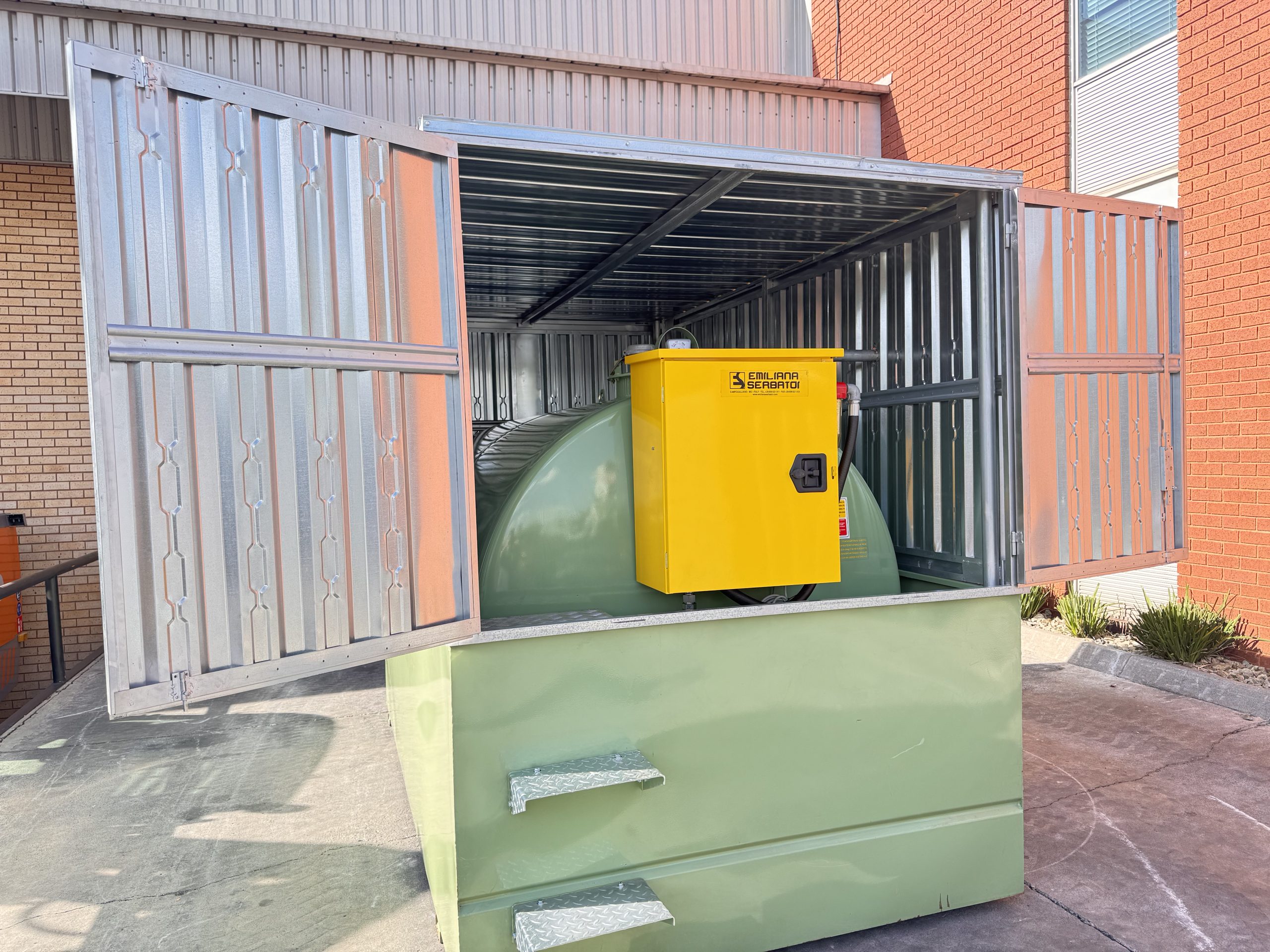

| SecureBox |
|---|
| Description | Galvanized steel enclosure providing complete protection against weather and theft. |

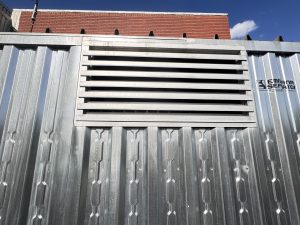

| Features | Ventilation grill, eyebolts for lifting, inspection/filling door with lock & keys, external vent. |
| Documents & Certifications |
|---|
| User & Maintenance Manual | Provided |
| Fuel Pressure Testing Certificate | Provided |
| Calibration Table | Provided |
